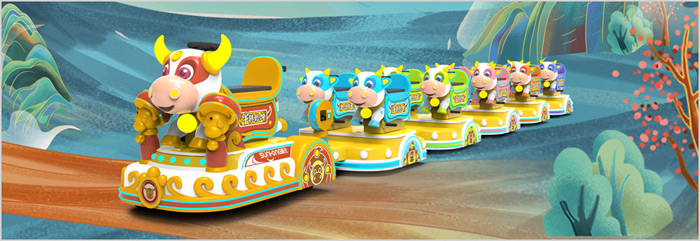

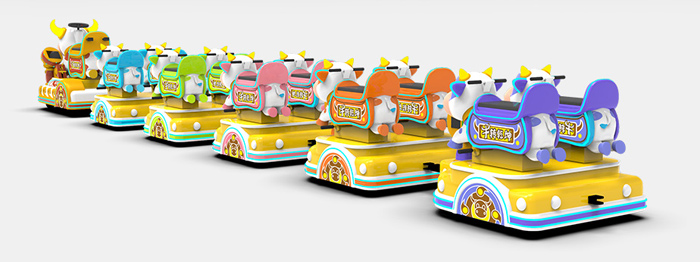

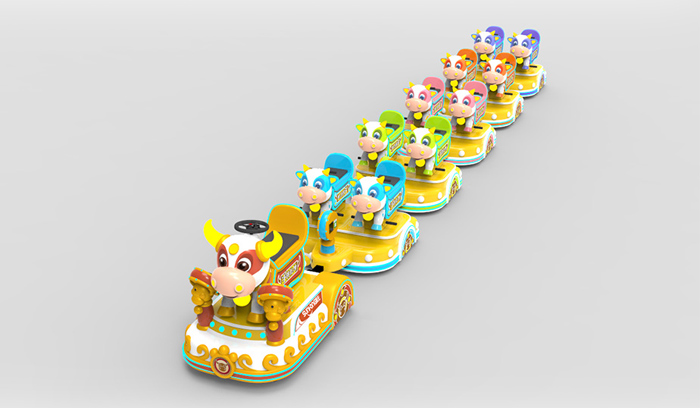

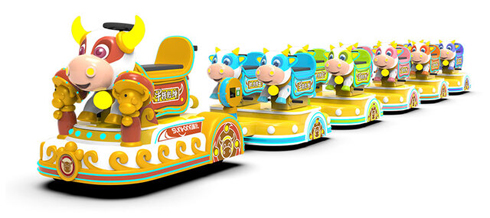

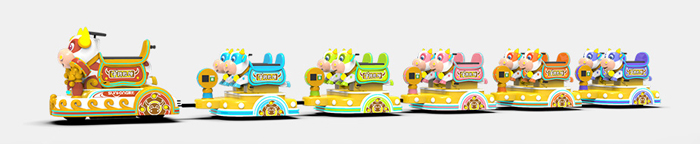

Bull Trackless Train - BH0093
|
Power Supply: |
DC48V-(4*12v) 150AH lead-acid maintenance-free |
|
Working Voltage: |
DC12V (decoration and control) /DC48V (motor) |
|
Operating Current: |
Battery average output less than 15A |
|
Charger: |
Automatic smart charger 48V/25A |
|
Charge Time: |
6-8h |
|
Mileage: |
About 60 km (8~12h ) |
|
Electronic Control System: |
Brush-less motor controller |
|
Drive Power: |
1.2kw (DC brush-less motor) |
|
Passenger: |
11 persons |
|
Max Load Capacity: |
140kg/(single carriage),770kg/(whole train) |
|
Max Speed: |
≤ 5km/h (full load) |
|
Turning Radius: |
Turning radius inner side ≧1.8m, Turning radius outer side ≧2.9m |
|
Train Weight: |
830KG |
|
Total Size: |
10.85m (L) x1.3m (W) x 1.42m (H) |
|
Locomotive Size: |
1.92m (L) X1.17 (W) X1.42 (H) |
|
Carriage Size: |
1.78m (L) x 1.3m (W) x 1.1m (H) (with pull rod) |
1. The appearance of the product is made of high-quality plexiglass, engineering plastics, and glass fiber reinforced plastic, and is produced by a new color separation process, with bright colors, beautiful and durable;
2. The bottom frame is made of high-quality square steel pipe and other welding, and the structure is firm and reliable after spraying treatment;
3. The drive is a DC motor, and the drive part adopts the differential gear of professional production vehicle rear axle, and has a reliable braking device;
4. Equipped with standard operating mechanism and various braking mechanisms. Flexible operation and reliable braking;
5. The cab is wide and bright, with a wide field of vision. Various instruments, switches and charging sockets are arranged in the cab.
6. Self-contained driving recorder, recording the whole process, safe and reliable, effectively ensuring the safety of the whole vehicle
7. The number of people management system is optional, which is convenient for investors to operate and manage multiple venues and accurately count the number of people.
